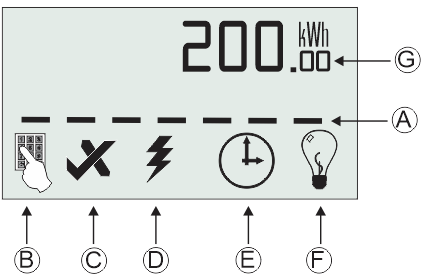

Identifying the Icons on your Conlog Meter

1. Indicates rate of consumption

2. Token required
3. Tick icon = Accept  |  Cross icon = Reject
4. Electricity connected

5. Activity in progress, please wait

6. Tamper mode is on
7. Number of remaining KW

• Related Articles

• Conlog Meter - What is my meter number?

  To view your meter number, enter #100# on your Conlog meter keypad. The meter number will be displayed.

• Conlog Meter - beeping / alarm

  The Conlog Meters have an audible alarm (beeping) to warn you of low credit. To turn off this alarm using the meter keypad, press and hold the backspace (arrow) button for 3 seconds.

• Conlog Meter - meter switches off and on constantly

  The Conlog meter is overloading due to tripping conditions. The STss Team needs contact Conlog to request an override token to resolve the problem. Please give the Stss Call Centre Agent the details of the error and request an overide token.

• Conlog Meter - Flashing Light Bulb

  Tamper mode is activated when the meter has been disconnected from power - this can be due to load shedding or if the meter was disconnected to be replaced or repaired. To reset the meter a Tamper Token must be entered. Please ask the STss Call ...
